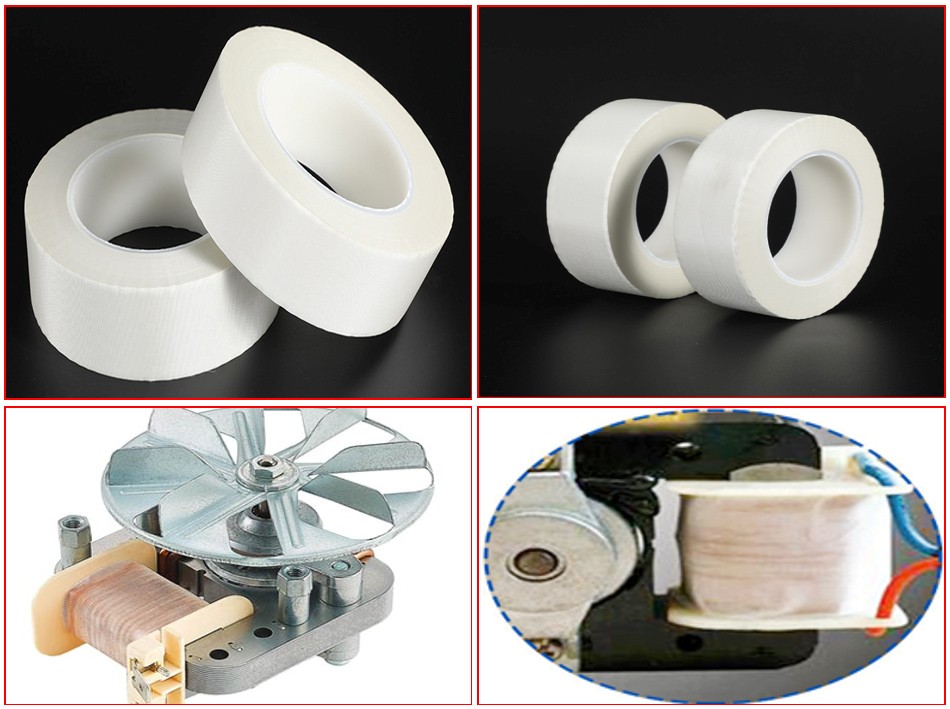

The product is widely used for winding lead wrapping of H-class motors and transformers, insulation wrapping of high-energy lithium batteries, various high-temperature sandblasting protection and high-temperature shielding protection, high-temperature insulation protection for air conditioning appliances, automotive electronics, digital electronics, etc.
Glass Coated Tape has good thermal stability, can work at 200 ℃ for a long time, and can withstand high temperatures of 260 ℃ for a short period of time. It’s also soft and tear resistant, with strong adhesion, not easily deformed, no adhesive residue, high mechanical strength, suitable for tightly and firmly wrapping coils.
|
Model |
Description |
Total Thickness |
Initial sticky |
180° Pealing |
Tensile Strength |
Sticky |
Glue type |
|
XS-35 |
Rubber adhesive type |
250um |
14# |
15N/25mm |
180N/25mm |
＞48H |
Rubber |
|
XS-36 |
Hot adhesive type |
250um |
18# |
22N/25mm |
200N/25mm |
＞48H |
Hot |
|
XS-37 |
Matte type |
240um |
18# |
22N/25mm |
180N/25mm |
＞48H |
Hot |
|
XS-39 |
Double coated type |
230um |
14# |
15N/25mm |
150N/25mm |
＞48H |
Rubber |
1. Product warranty: please store under below conditions.
2. Store in dry air place where temperature is below 30°C and humidity is lower than 65%RH.
3. Do NOT expose on direct sunlight.
4. Keep adhesive side clean, without dust or oil sticked.
5. All kind of sizes can be customized.
