In the electronic and electrical industry, it can be used for insulation wrapping of H-class motor coils with high requirements, fixing the end of high-temperature resistant coils, temperature measuring thermal resistance protection, capacitance and wire entanglement, and other adhesive insulation under high-temperature working conditions. BGA welding operation protection; PCB board gold finger high-temperature spray shielding protection SMT wave soldering, reflow soldering, circuit board soldering tin shielding; Transformer (inverter) high-voltage insulation bundling; Manufacturing and bundling of lithium batteries for mobile phones with insulation; Heating device, motor insulation, outer insulation; High temperature paint baking, spray shielding protection, electroplating protection, heat-resistant coil joints, etc.

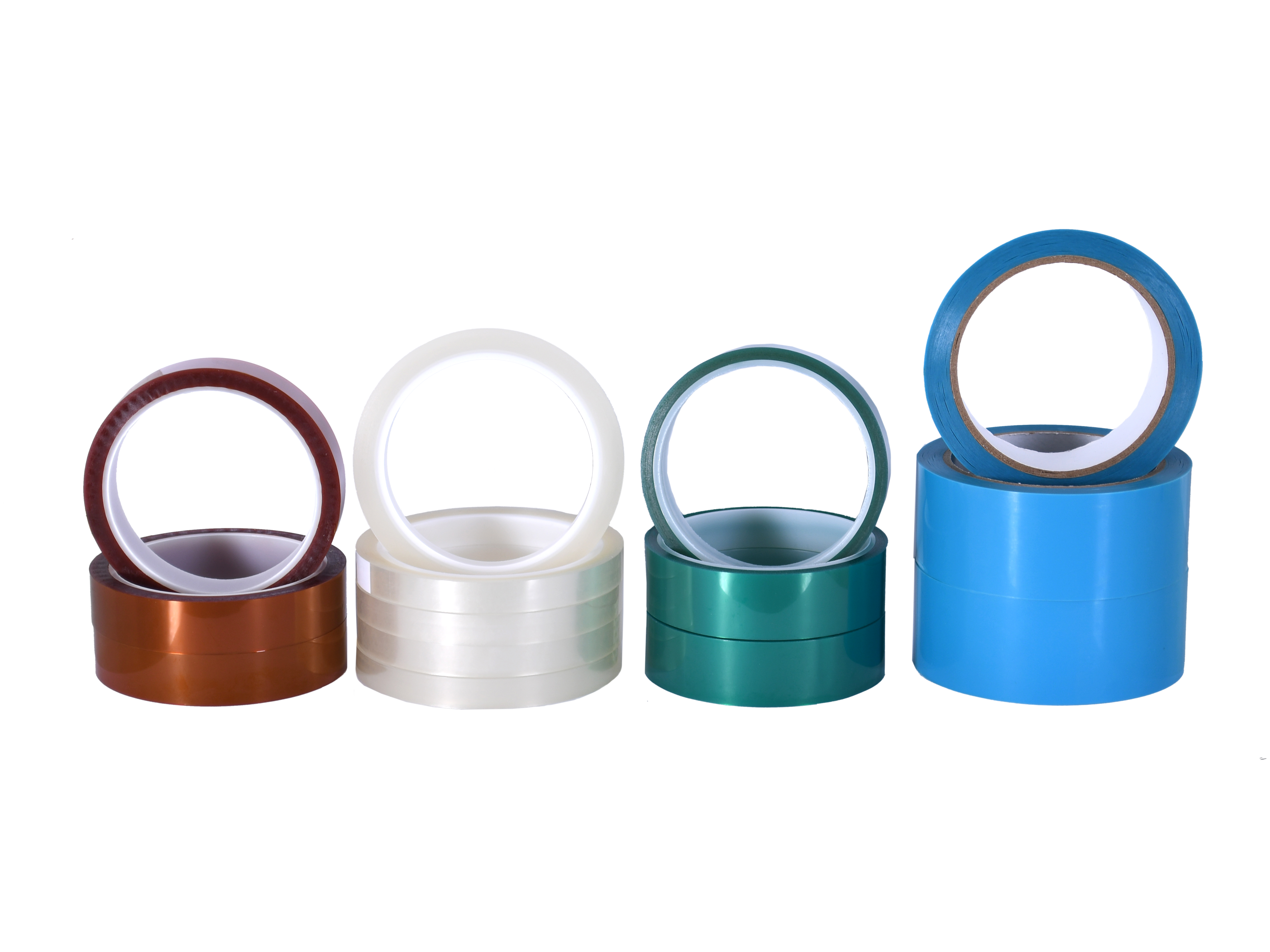

This product is so called Gold finger high-temperature tape, is resistant to high temperature, acid and alkali, corrosion, high pressure, and no residual adhesive. It is used for various purposes such as shielding, protection, and insulation. It also has strong tearing and no residual adhesive, providing excellent protection for gold fingers and high-end electrical insulation, motor insulation, as well as fixing the positive and negative electrode ears of lithium batteries. There are no scratches, wire drawing, and other phenomena, and it has good shear resistance and is easy to punch die cut.
|
Model |
Type |
Thickness |
Back |
180°Tensile |
Sticky |
Temp. |
Glue type |
|
XS-J200 |
Single-sided |
50um |
PET |
100N/25mm |
＞48H |
200℃ |
PSA |
|
XS-J260 |
Single-sided |
50um |
PI |
100N/25mm |
＞48H |
300℃ |
Silicon |
|
XS-J260B |
Double-sided |
100um |
PI |
120N/25mm |
＞48H |
300℃ |
Silicon |
1. Product warranty: six months under below storage conditions.
2. Store in dry air place where temperature is below 30°C and humidity is lower than 70%RH.
3. Do NOT expose on direct sunlight.
4. Keep adhesive side clean, without dust or oil sticked.
5. All kind of sizes and other colors can be customized.
