Acrylic surface is suitable for sticking plastics, nameplates, etc., while silicone surface is suitable for sticking silicone surfaces. It is widely used in electronic silicone pads for bonding, pasting, and fixing different components. Its performance is superior, suitable for die-cutting molding, and more efficient use on production lines.

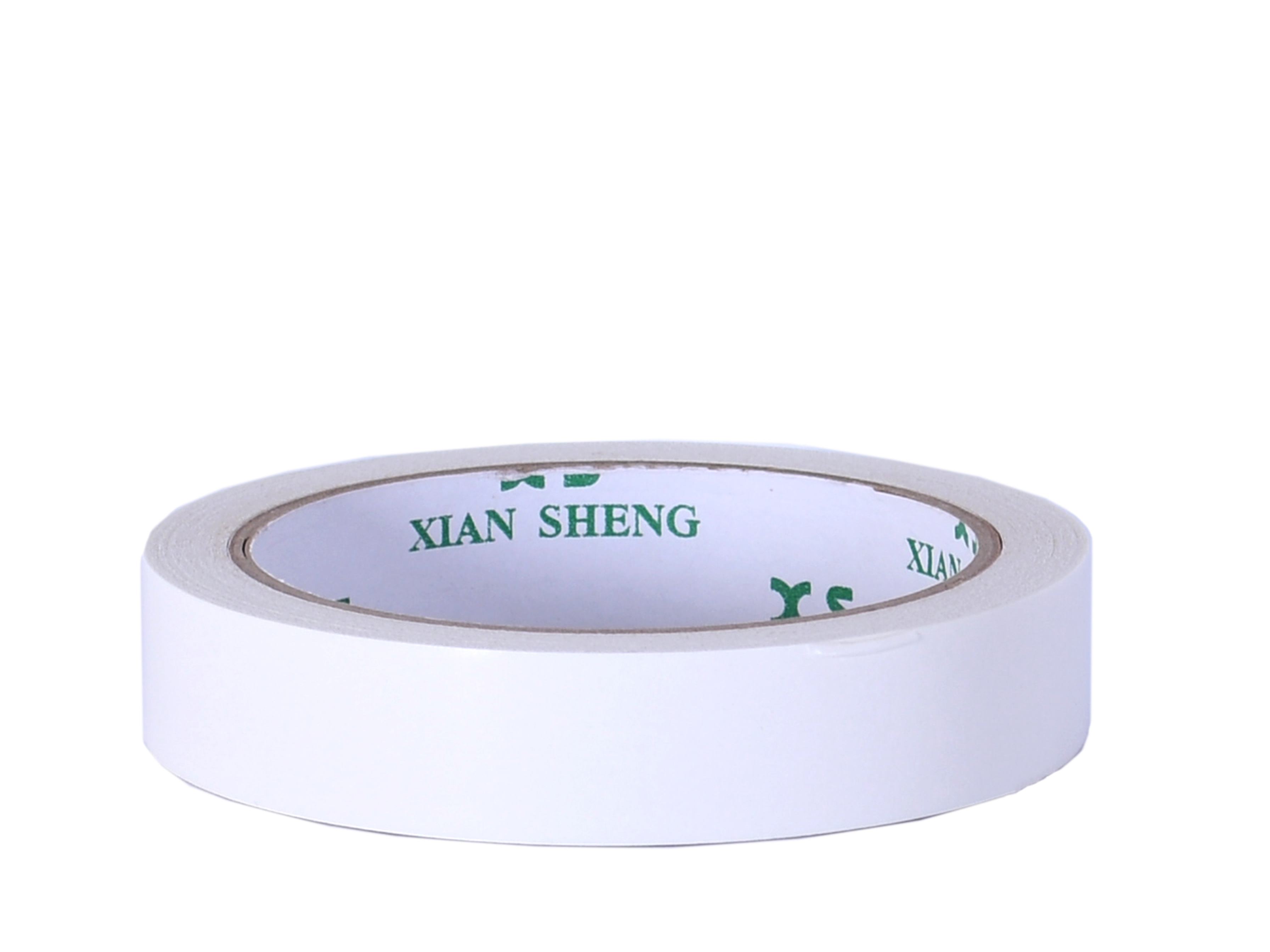

Double coated tape uses PET as raw material, coated with acrylic adhesive and silicone double-sided adhesive tape. It has characteristics such as temperature resistance, weather resistance, and stability. Acrylic acid has high tack to plastic and nameplates, while silicone has high tack to silicone surfaces. No treatment agent required, no fluorine release paper required, strong adhesion, no bubbles, perfect fit without damaging the silicone surface.
|
Model |
Type |
Thickness |
Back |
180°Tensile |
Sticky |
Temp. |
Glue type |
|
XS-SR80 |
Double-sided |
80um |
Cotton Paper |
8N/25mm |
＞3H |
60℃ |
Hot Melt |
|
XS-SY80 |
Double-sided |
80um |
Cotton Paper |
10N/25mm |
＞24H |
100℃ |
Oil-based |
|
XS-SP50 |
Double-sided |
50um |
PET |
8N/25mm |
＞24H |
100℃ |
Oil-based |
|
XS-SD200 |
Double-sided |
200um |
Non-woven |
10N/25mm |
＞24H |
130℃ |
Oil-based |
|
XS-SW200 |
Double-sided |
200um |
Fibre net |
18N/25mm |
＞24H |
100℃ |
Oil-based |
|
XS-SH100 |
Double-sided |
100um |
Cotton Paper |
10N/25mm |
＞24H |
100℃ |
AAC |
|
XS-SP100 |
Double-sided |
100um |
PET |
10N/25mm |
＞24H |
130℃ |
AAC |
|
XS-SW50W |
Double-sided |
50um |
/ |
/ |
＞48H |
100℃ |
AAC |
1. Product warranty: six months under below storage conditions.
2. Store in dry air place where temperature is below 30°C and humidity is lower than 70%RH.
3. Do NOT expose on direct sunlight.
4. Keep adhesive side clean, without dust or oil sticked.
5. All kind of sizes can be customized.
